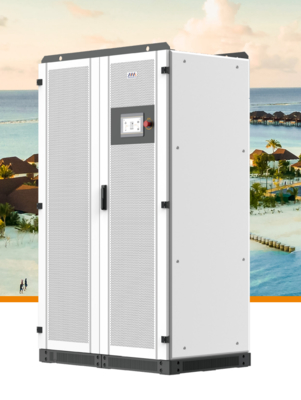

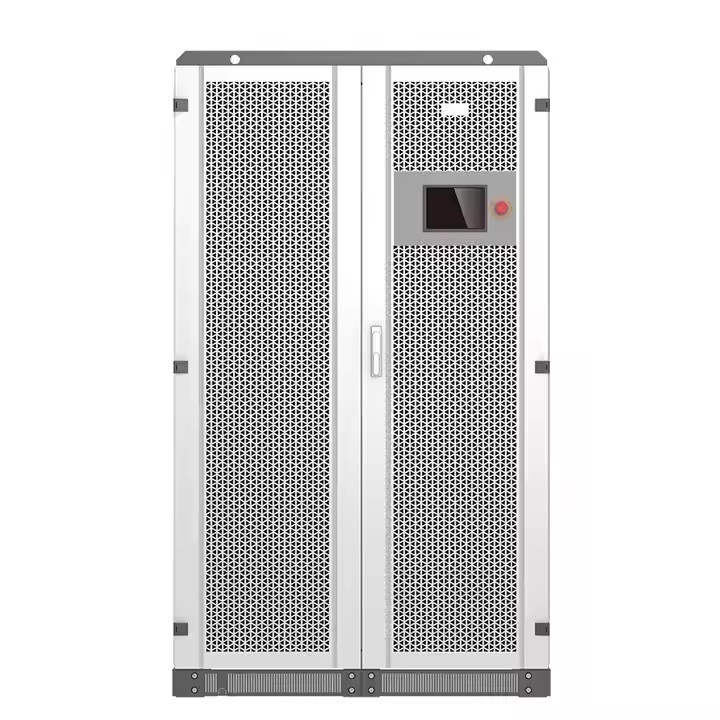

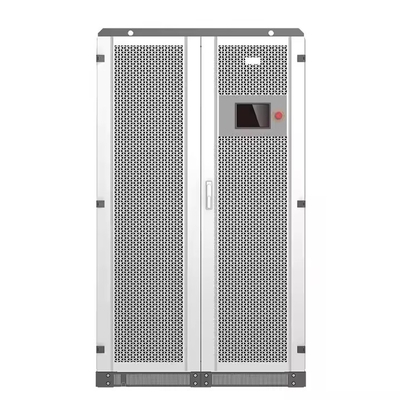

100kW Industrial Hybrid Inverter with 110kVA Output and Triple MPPT

High-Power Energy Hub for Demanding Commercial Applications

This 100kW three-phase hybrid inverter is engineered for industrial facilities and large-scale commercial operations requiring high-density power conversion and advanced grid interaction. Unlike smaller 30kW and 50kW models, it delivers 110kVA peak output with triple MPPT tracking, making it ideal for factories, data centers, and utility-scale microgrids.

Key Features & Benefits

1. Industrial-Grade Power Output

100kW continuous output (110kVA peak)

• Powers heavy machinery, HVAC systems, and production lines with stable three-phase electricity. The 10% overload capacity (110kVA) ensures reliable performance during motor starts and production surges.

Triple MPPT inputs (1,000V max PV voltage)

• Three independent trackers with 120-240kW PV input capacity, allowing for complex solar array configurations (e.g., mixed rooftop, carport, and ground-mounted systems). The 420-850V MPPT range optimizes high-voltage string designs for maximum efficiency.

<3% total harmonic distortion (THD)

• Delivers cleaner power than traditional diesel generators, protecting sensitive industrial equipment such as CNC machines, laser cutters, and server farms.

2. High-Voltage Battery & Grid Support

420-850V battery voltage compatibility

• Directly integrates with modern 600-800V lithium battery systems, eliminating the need for additional DC-DC converters and improving system efficiency by 2-3%.

120kW maximum charging power

• Rapidly replenishes 500kWh+ battery banks in under 4 hours, ensuring uninterrupted power for 24/7 operations. Adaptive charging profiles extend battery lifespan.

Grid services & peak shaving

• Supports virtual power plant (VPP) participation, demand response programs, and time-of-use (TOU) optimization to reduce energy costs.

3. Heavy-Duty Construction

-30°C to 55°C operational range

• Arctic-grade components ensure cold-start capability at -25°C, while advanced thermal management maintains full output up to 45°C (with derating above).

IP20-rated enclosure with reinforced cooling

• Dual high-speed fans with dust filters ensure optimal thermal performance in harsh industrial environments.

110% continuous overload & 120% short-term burst

• Handles heavy inductive loads (e.g., compressors, crushers) without voltage fluctuations.

4. Smart Energy Management

Parallel operation (up to 6 units = 600kW total)

• Master-slave synchronization ensures balanced power sharing across multiple inverters.

Advanced grid interaction

• Anti-islanding protection, frequency-watt response, and reactive power control for utility compliance.

Remote monitoring & predictive maintenance

• Ethernet/4G connectivity for real-time performance tracking and fault alerts.

Technical Specifications

Certifications & Compliance

• IEC 62109-1: Full safety compliance for industrial environments

• VDE-AR-N 4105: German grid-connection standards

• EN 61000-6-4: EMC performance for factories

Implementation Scenarios

1. Manufacturing Plants

   • Reduces peak demand charges by 30-50% through solar self-consumption

   • Seamless backup power transition during outages

2. Data Centers

   • <20ms grid-to-battery switching for uninterrupted uptime

   • Integrates with existing UPS systems

3. Utility Microgrids

   • Supports islanding mode for community resilience

Maintenance & ROI

• Service Interval: 12 months or 10,000 operating hours

• Expected Lifespan: 10+ years (capacitor replacement at year 8)

• ROI Period: 3-5 years for industrial users
